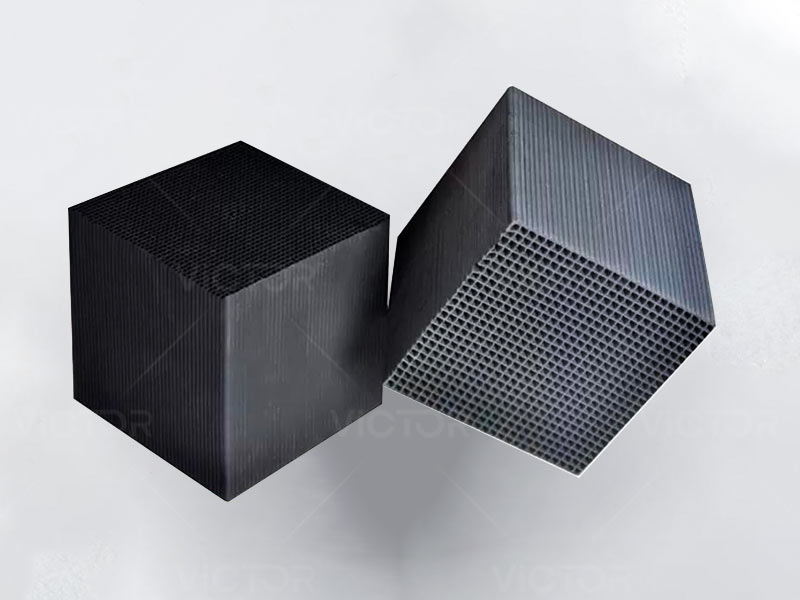

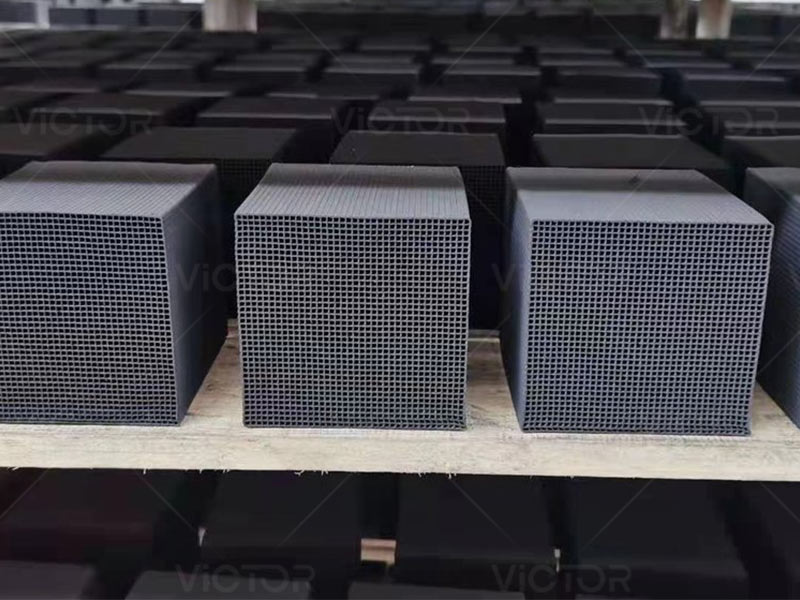

Honeycomb Activated Carbon

Honeycomb activated carbon is categorised into two types within the water purification market: water-resistant and non-water-resistant variants. All other technical specifications remain identical. Production can be tailored to meet diverse client requirements. Commonly available dimensions include: 100x100x100mm, 50x50x100mm, and 100x100x50mm (mould sizes can be adjusted to produce honeycomb activated carbon of varying dimensions). For further details, please contact us via the telephone number provided on this site.

        Honeycomb activated carbon possesses a large surface area, strong adsorption capacity, and extended service life. Each pore is highly developed, enabling extensive surface contact with exhaust gases. Harmful gases within exhaust fumes are adsorbed and decomposed, thereby purifying the exhaust gases. Honeycomb activated carbon finds extensive application in treating gases requiring purification or exhaust treatment. Practical evidence demonstrates its superior purification efficacy compared to conventional activated carbon. Currently, it can remove pollutants including: chlorine, benzene, formaldehyde, acetone, ethanol, diethyl ether, nitrogen oxides, carbon tetrachloride, methanol, and malodours. When chemically impregnated, honeycomb activated carbon can effectively remove: hydrogen sulphide, ammonia, mercury, carbon monochloride, dioxins, acid mists, alkali mists, amines, mercaptans, and similar compounds.


项 目 Subject	指 标 Index
规 格 Specification （mm）	50*50*100	100*100*100
碘吸附值 Iodine Absorb (mg/g)	≥750
比表面积 Specific Surface Area (㎡/g)	≥600
四氯化碳 CTC (%)	≥65
抗压强度 Compressive strength(mpa)	0.9
水 份 Moisture (%)	≤5
方 孔 Square hole (in)2	150
壁 厚 Wall thickness (mm)	1.0
使用温度 Temperature (℃)	≤400
体积密度 Bulk Density g/cm3	0.35-0.60
苯吸附率 Adsorption rate of benzene %	Dynamic adsorption≥37
苯吸附率 Adsorption rate of benzene %	Static adsorption≥52
Wind speed at the tower top	0.8m/s
Pore density	100 holes per square inch, 150 holes per square inch
Please note: All specifications listed above can be manufactured to customer requirements.

       Honeycomb activated carbon may be employed directly. It may also be placed within purification cabinets or adsorption beds. Should exhaust gases persist at high concentrations or with substantial discharge volumes, additional purification cabinets or adsorption beds may be incorporated for continuous operation. During utilisation, elevated exhaust gas temperatures diminish adsorption capacity, exhibiting an inverse relationship with temperature. The faster the temperature rises, the more rapidly adsorption capacity declines, and vice versa. Another critical consideration is avoiding high concentrations of oil mist or dust-laden exhaust. Tar deposits can clog the microporous structure of the honeycomb activated carbon, significantly increasing resistance and diminishing adsorption efficiency. Should this occur, installing a dust filter prior to use is advisable to achieve optimal purification results and extend service life.
